Place of Origin: | Guangdong,China |
Brand Name: | Tecon China |
Certification: | CE |
Model Number: | ZT9802+HD4916 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Standard export Wooden box , 5*40HQ |
Delivery Time: | 3-5months |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 sets per year |
Manufacturer: | Tecon | Working Hour: | 8~22 Hours Per Day |
---|---|---|---|
Type: | ZT9802+HD4916 | Total Power: | 66KW |
Paper Layer: | 2~4 Layers Of Paper | Total Weight: | 55.7T |
Machine Color: | Can Be Customized | Port: | Shenzhen |
Bag Length: | 520~880mm | Bag Width: | 420~600 Mm |
Bottom Width: | 90~160mm | Bottom Open Width: | 200~440mm |
Warrantly: | 1 Year | Bearing: | (NSK, Japan) |
High Light: | kraft paper bag machine,bag making machine |
Advanced Multiwall Kraft Paper Bag Making Machine for Cement
Features of our full-automatic paper bag production line
1. Flat & glued bottom with filling valve;
2. Different types for cement, chemicals, foods, tea, etc.;
3. 4-color automatic printing ;
4. 2~4 paper layers, with one extra PE/PP film available ;
5. 35~50 million bags/year;
6. Seaworthy packing;
7. Covered in film and packed in pallet.
8. Four 40 HQ container for shipment
ZT9802 Tuber Machine compose of following parts
2-color printing machine | 1 |
Mill roll stands | 5 |
Paper web guide | 1 |
Automatic paper unwinding | 1 |
Auxiliary web guide | 1 |
Perforation unit | 1 |
Cross stepped gluing unit | 1 |
Longitude seam gluing unit | 1 |
Tubes forming unit | 1 |
Driving tearing-off unit | 1 |
Delivery and counting unit | 1 |
Electrical system | 1 |
Bearing | NSK Japan |
Compressor | 1 |
HD4916 Bottomer machine compose of following parts
Name | Quantity |
High speed feeder machine | 1 |
Perforation machine | 1 |
Tube opening unit | 1 |
Automatic gluing machine | 1 |
Scrip sealing machine | 1 |
Bag bottom turning unit | 1 |
Counting and delivery line | 1 |
Automatic delivering out unit | 1 |
Piling up platform | 1 |
Electric control unit | 1 |
Vacuum-pump | 1 |
Specifications
1) Cement paper bag making machine.
2) Prompt and professional after sale service.
3) High-speed Automatic Cement Paper Bag Making Machine is professional machine for valve bottom-pasted bag. The bags are widely used for packing powder materials or particulate materials, such as cement, chemical raw material and grains.

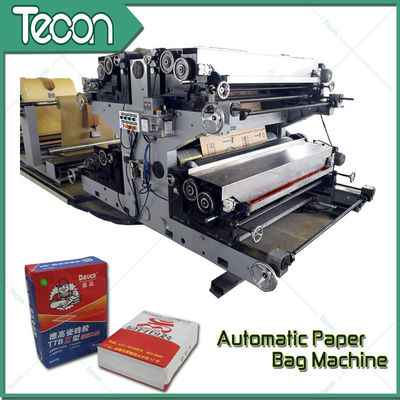

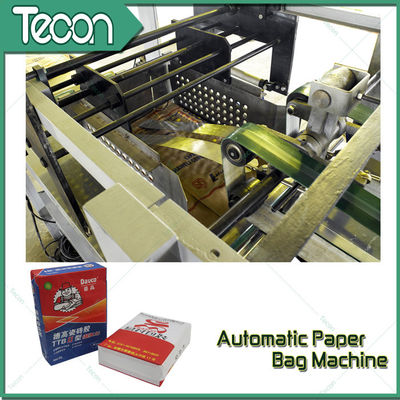

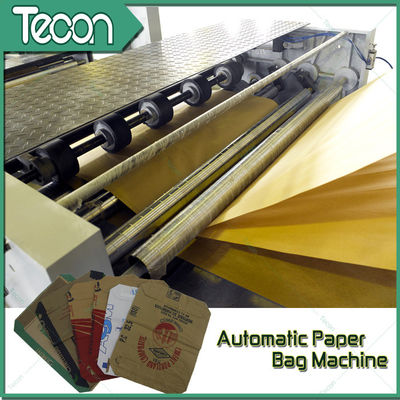

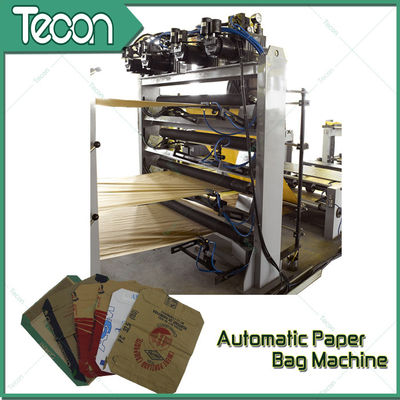

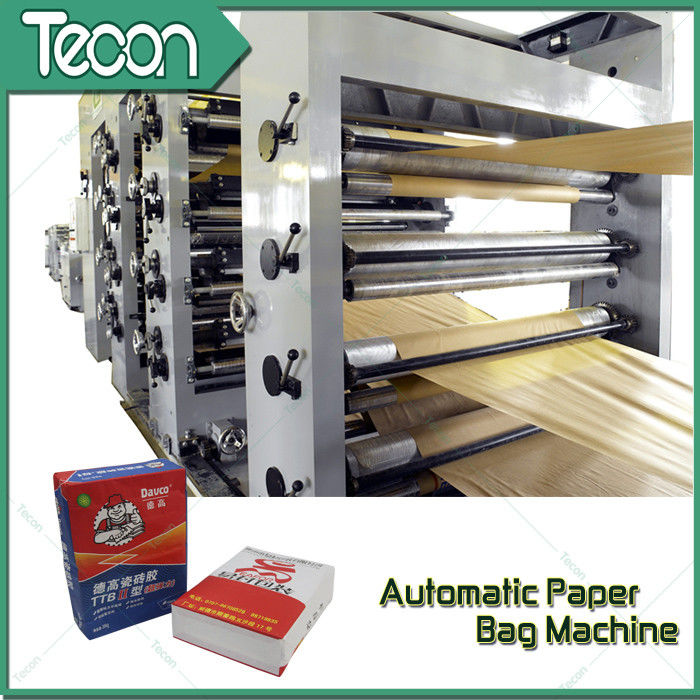

The Detail of Machine
Sample Bag
