Place of Origin: | China |
Brand Name: | Tecon |
Certification: | CE |
Model Number: | HD4913 |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | negotiation |
Packaging Details: | Standard Wooden Case |
Delivery Time: | 3 months after received your payment |
Supply Ability: | 16pcs per year |
Colour: | Customized | Size: | 21.3m X 2.3m X 1.8m |
---|---|---|---|
Design Temperature: | 0 - 40℃ | Weight: | 22.7 Tons |
Air Consumption: | Air Consumption | Main Drive Motor: | 33 Kw |
Bag Length: | 520~880mm | Bag Width: | 420~600 Mm |
Bottom Width: | 90~130mm | Bottom Open Width: | 200~380mm |
Distance Between Bottom Centers: | 420~780mm | ||
High Light: | bag making machine,tea bag making machine |

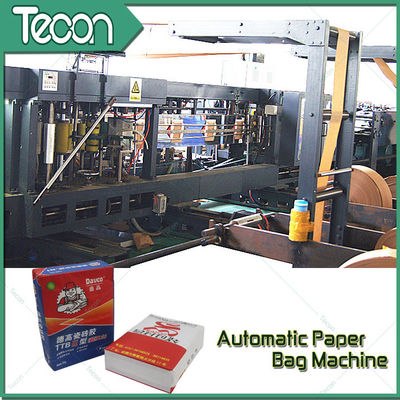

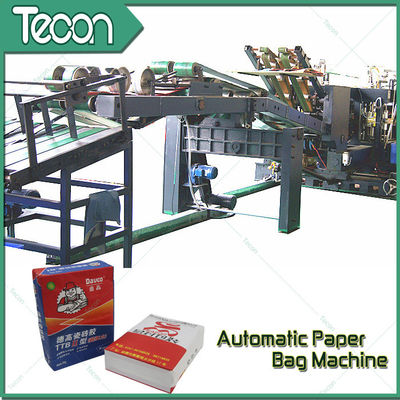

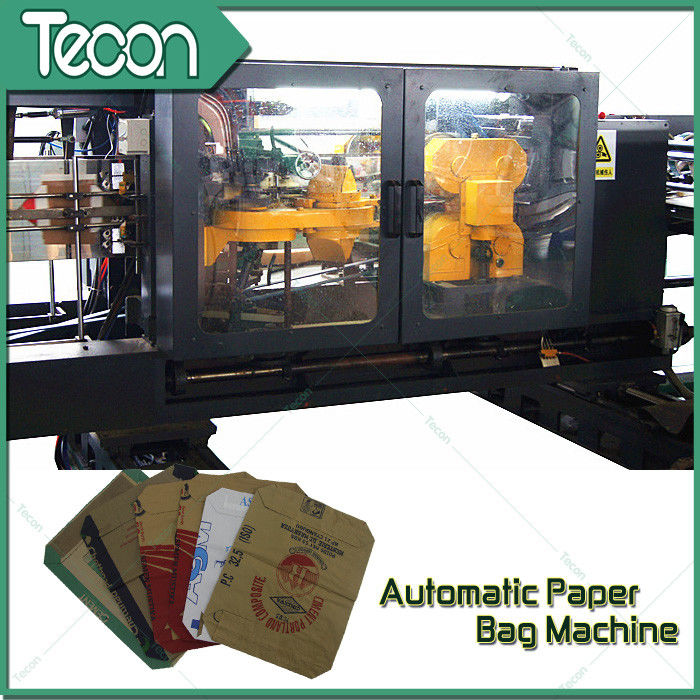

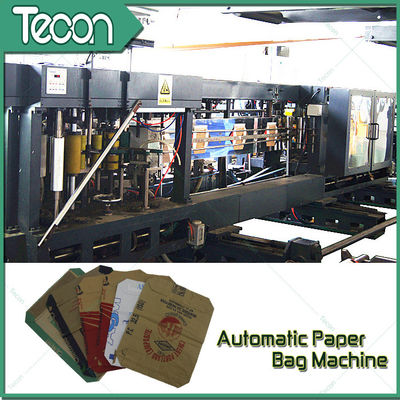

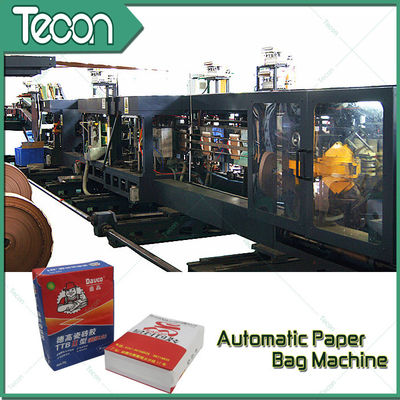

High Technology Four- Color Printing Kraft Paper Bag Making Machine
Usage and Characteristics
It is used for producing valve cement paper bags with printing. The main motor adopts frequency conversion motor to save more electricity and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length more accurate and the error smaller. It adopts advanced computer to adjust length more freely and accurately.It can make one printed bag and three unprinted bags one time, or four unprinted bags one time in allowed width.
HD4913 Bottomer Machine
Operating condition
Working hour |
22 hours/day |
Design temperature |
0~40℃ |
Design humidity |
MAX. 95% |
Number required |
1 unit |
Model name |
HD4913 |
Performance
Speed |
80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.) |
Bag length |
520~880mm |
Bag width |
420~600 mm |
Bottom width |
90~130mm |
Bottom open width |
200~380mm |
Distance between bottom centers |
420~780mm |
Valve sheet length |
100~250mm |
Valve sheet width |
120~170mm |
Main drive motor |
33kw |
Total weight |
22.7T |
Size of whole set |
21.3m×2.3.m×1.8m ( L×W×H) |
Valve sheet reel diameter |
Max.1,300mm |
Composing of the production line
HD4913 Bottomer Machine
Name |
Quantity |
High speed feeder machine |
1 |
Perforation machine |
1 |
Tube opening unit |
1 |
Automatic gluing machine |
1 |
Scrip sealing machine |
1 |
Bag bottom turning unit |
1 |
Counting and delivery line |
1 |
Automatic delivering out unit |
1 |
Piling up platform |
1 |
Electric control unit |
1 (Schneider, German) |
Vacuum-pump |
1 (Schneider, German) |
We will arrange the engineers to the buyer’s factory for installation, commissioning and training.
1). The seller shall dispatch 4 qualified engineers to the job site for the erection, commissioning, and training. The buyer shall make available of testing facilities and skilled personnel as well as utilities and all raw materials in the specified quantity and quality.
2). The buyer should accept the equipment after it reaches the technical performance indicated.
3). We will give some wearing parts to buyer for free. The warranty of machine is one year.
Sample Bags:
