Place of Origin: | China |
Brand Name: | Tecon |
Certification: | CE |
Model Number: | HD4916BD |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 5 months after received your payment |
Payment Terms: | L/C, T/T |
Supply Ability: | 16pcs per year |
Weight: | 34T | Size: | 23.5m×2.3m×1.8m( L×W×H) |
---|---|---|---|
Working Hour: | 22 Hours/day | Air Consumption: | 1,100L/min |
Paper Thickness: | Normal Specification Paper | Sealing & Cutting: | Heat-Sealing Heat-Cutting |
Packaging Details: | Wooden Case | Computerized: | Yes |
Color: | User-defined | Printing Style: | Flexo Printing, 4 Colors |
Tube Width: | 380~620 Mm | Bottom Width: | 80~160 Mm |
Bag Length: | 390~1020 Mm | Bottom Center Distance: | 290~860 Mm |
Number Of Ply: | 2~4paper+1 PP/PE | Strength Sheet Unit: | YES |
High Light: | automatic paper bag machine,automatic bag making machine |

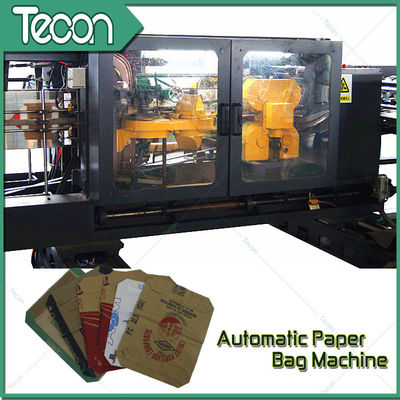

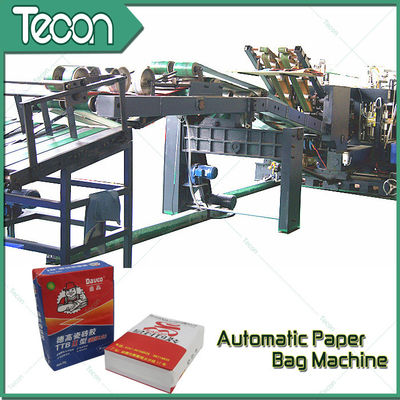

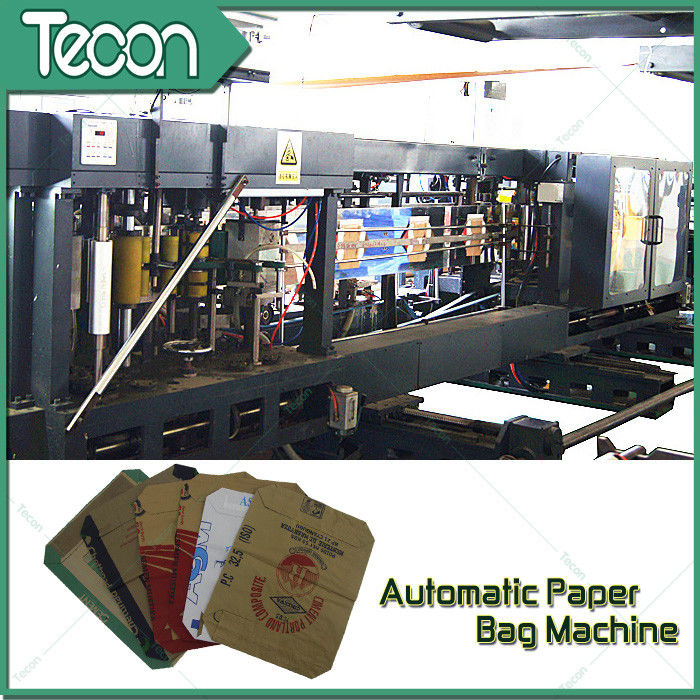

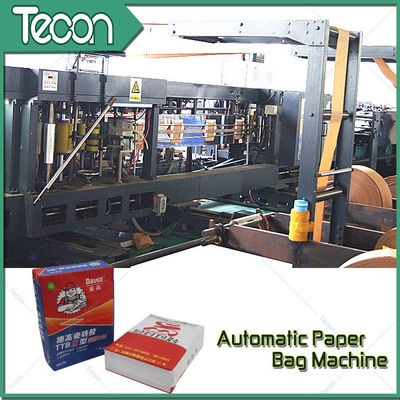

Multifunction Full Automatic Kraft Paper Bag Making Machine with Printer
Perfect service:
1. Technical consultation
2. Detailed design of factory or workshop
3. Project evaluation
3. Training engineers and workers
4. Supplying spare part for long time
5. Installing and testing the whole production line
6. Good after-sale and in-sale servcie
Features of our full-automatic paper bag production line:
1. Flat & glued bottom with filling valve;
2. Different types for cement, chemicals, foods, tea, etc.
3. 35~50 million bags/year
4. Servo system control or PLC control available, integrated with Photoelectric & Pneumatic control system
, Siemens electrical system
5. Full technical service for installation, training and maintenance
6. Full solution for factory construction and materials purchase.
7.Detailed design of factory or workshop
8.Installing and testing the whole production line
9.Good after-sale and in-sale servcie
Technical parameters of our production line:
HD4916BD Bottomer Machine
(bottomer with strength sheet pasting unit)
Operating condition
Working hour |
22 hours/day |
Design temperature |
0~40℃ |
Design humidity |
MAX. 95% |
Number required |
1 unit |
Model name |
HD4916BD |
Performance
|
HD4916BD |
Speed |
MAX 80 bags/min |
Tube Width |
380~620 mm |
Bottom Width |
80~160 mm |
Valve Sheet Length *Width |
(100-300)﹡(120-340)adjustable |
Bag Length |
390~1020 mm |
Bottom Center Distance |
290~860 mm |
Number of ply |
2~4paper+1 PP/PE |
Strength sheet unit |
YES |
Strength sheet length *width |
(270~520)﹡(80~160) |
Main Drive Motor |
35KW |
Machine size |
23.5﹡2.3﹡1.8(M) |
Machine weight |
N34(T) |
Composing of the production line
HD4916BD Bottomer Machine
(bottomer with strength sheet pasting unit)
Name |
Quantity |
High speed feeder machine |
1 |
Perforation of the exhaust outlet unit |
1 |
Tube opening unit |
1 |
Automatic gluing machine |
1 |
Scrip sealing machine |
1 |
Bag bottom turning unit |
1 |
Counting and delivery line |
1 |
Automatic delivering out unit |
1 |
Piling up platform |
1 |
Electric control unit |
1 (German Siemens) |
Vacuum-pump |
1 (German Rietschele) |
Bearing |
(Janpan NSK) |
Our paper bag production line consists two parts, one is paper tube making machine, another is bottom pasting machine. This production line can make 2-4 color printing, bottom valved paper bags. This kind of bags can be used for packing cement, mortar, chemicals materials and other granule or powder materials. Bags can be 2~4 layers kraft paper or clupak paper and one layer of PE material.

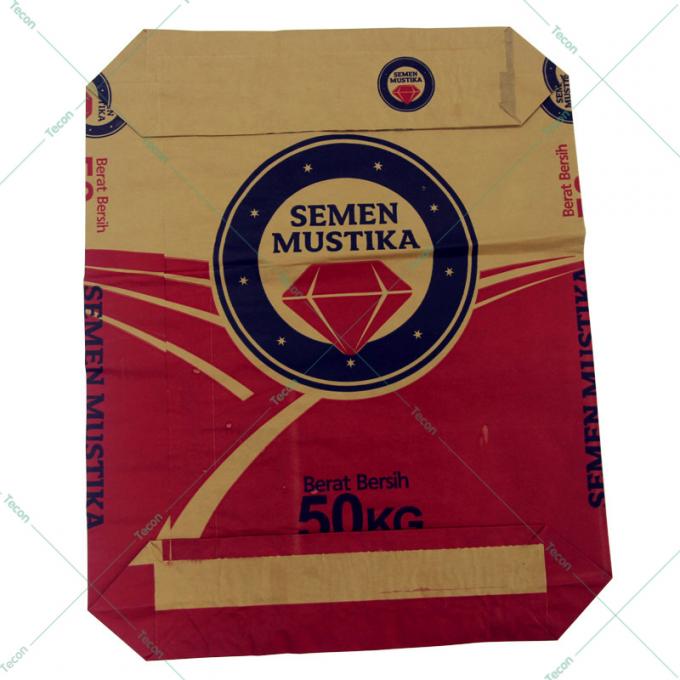

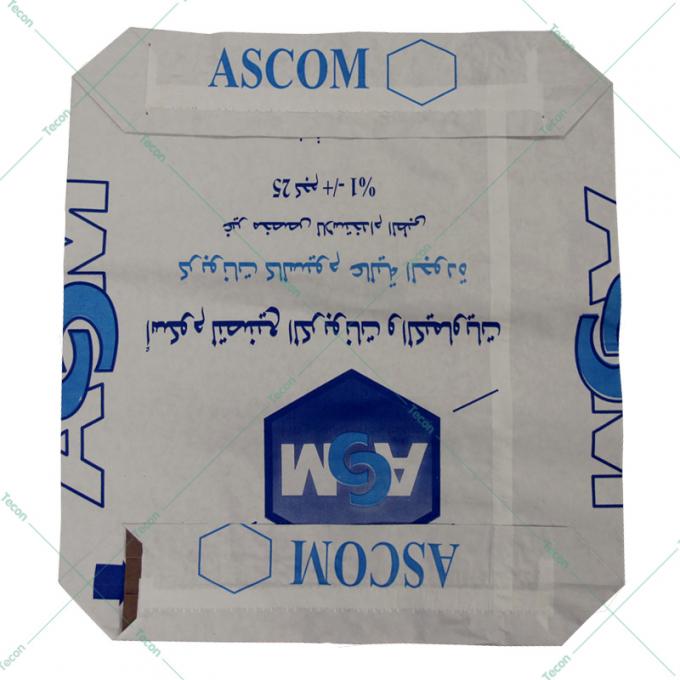

Sample Bags:
