Place of Origin: | Guangdong,China |
Brand Name: | Foshan,Tecon |
Certification: | CE |
Model Number: | ZT9804S+HD4916 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden box , 5 sets of 40-foot high cabinet |
Delivery Time: | 3-5months |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 sets per year |
Tuber Type: | ZT9804S | Manufacturer: | Tecon, China |
---|---|---|---|
Working Hour: | 16hours ~ 22hours Per Day | Air Consumption: | 1100l/min |
Servo System: | Available | Bottomer Type: | HD4916 |
Total Main Power: | 80kw | Delivery Time: | 5 Months After Down Payment Received |
High Light: | bag making machinery,paper bags manufacturing machine |
Professional Manufacturer of Valve Paper Bag Making Machine with PLC Control System
Company Profile
Foshan Tecon Package Machinery CO., LTD, we produce paper bag making machine. The machine is for valve bottom-pasted bag. The bags are widely used for packing powder materials or particulate materials, such as cement, chemical raw material and grains.
Our advantage
1. Main parts from Germany/Japan,Like bearing adopt NSK brand.
2. Automatic & High speed availabel.Up to 35~50 million bags per year
3. Multi-functions
4. Different types for cement, chemicals, foods, tea, etc.
5. 4-color automatic printing
Technical parameters of our production line:

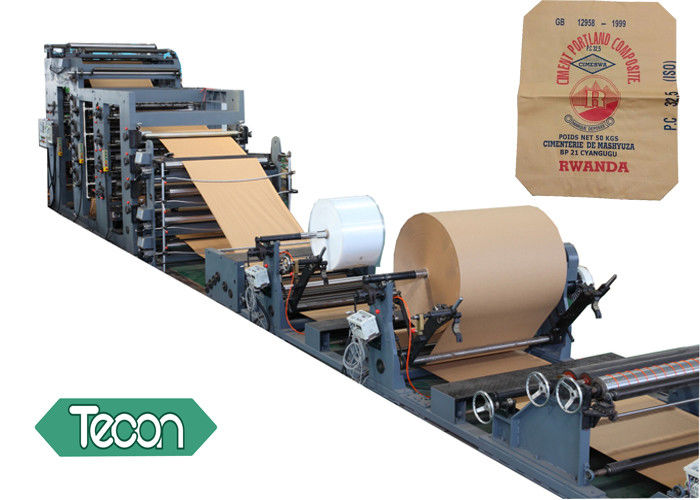

ZT9804S Tuber Machine
|
80~120 (Depends on paper quality, number of ply and operators’ skill.) |
Tube length(mm) |
400~1400 |
Tube width(mm) |
380~620 |
Type of cutting |
Step cut&Flat cut |
Number of paper layers |
2~4 plus 1 PP or PE film(Please specify if you need paper bag with PP film) |
Printing width(mm) |
1300 (MAX) |
Paper reel width( mm) |
660~1260 |
Paper reel diameter(mm) |
Max. 1, 300 |
Main drive motor(kw) |
47 |
Size of whole set( L×W×H)mm |
35.3*2.4*2.7 |
Total weight(T) |
32.5 |

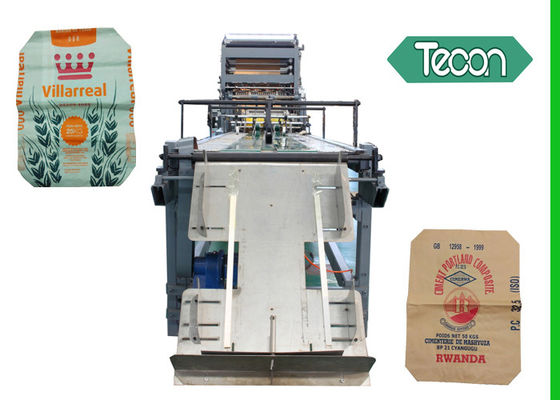

HD4916 Bottomer
Working speed(bags/min) |
80~160 |
Bag width(mm) |
420~600 |
Bag length(mm) |
520~880 |
Bottom width(mm) |
90~160 |
Distance between bottom centers(mm) |
420~780 |
Valve sheet length(mm) |
100~300 |
Valve sheet width(mm) |
120~240 |
Main drive motor(kw) |
33 |
Total weight(T) |
25 |
ZT9804S Tuber Machine compose of following parts
Name |
Quantity |

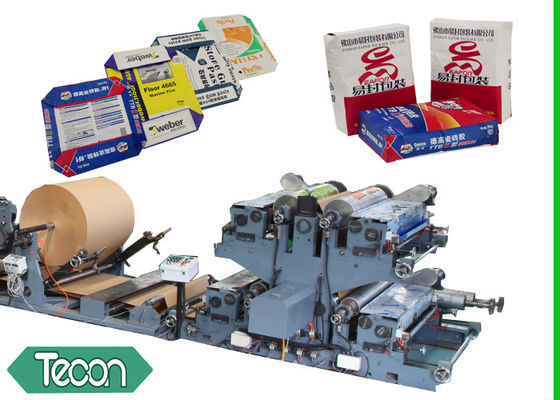

4-color printing machine |
1 |

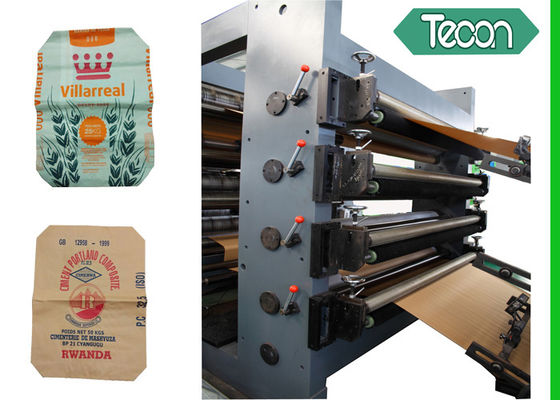

Mill roll stands |
5 |
utomatic paper rectifier |
1 |
Auxiliary paper driver |
1 |
Perforation unit |
1 |
Latitudinal gluing machine |
1 |
Longitude gluing machine |
1 |
Tubes forming unit |
1 |
Driving tearing-off unit |
1 |
Delivery and counting unit |
1 |
Electric control system |
1 (Schneider) |
Air compressor |
1 |
Servo system |
1 |
HD4913 Bottomer machine compose of following parts
Name |
Quantity |
High speed feeder machine |
1 |
Perforation machine |
1 |
Tube opening unit |
1 |
Automatic gluing machine |
1 |
Scrip sealing machine |
1 |
Bag bottom turning unit |
1 |
Counting and delivery line |
1 |
Piling up platform |
1 |
Electric control unit |
1 |
Delivery and counting unit |
1 |
Electric control system |
1 (Schneider, German) |
Vacuum-pump |
1 (Schneider, German) |
Bearing |
Japan,NSK |
Perfect service
1. Technical consultation
2. Detailed design of factory or workshop
3. Project evaluation
3. Training engineers and workers
4. Supplying spare part for long time
5. Installing and testing the whole production line
6. Good after-sale and in-sale servcie
Sample Bags
