Place of Origin: | China mainland |
Brand Name: | Tecon |
Certification: | CE |
Model Number: | HD4913B |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden box , 3*40-foot high cabinet |
Delivery Time: | 3-5months |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 sets per year |
Tuber Type: | HD4913 | Manufacturer: | Tecon, China |
---|---|---|---|
Main Power: | 33kw | Total Weight: | 22.7T |
Working Hour: | 22hours Per Day | Air Consumption: | 1100l/min |
Tuber Size: | 21.3m×2.3m×1.8m | Pow Supply: | 380V |
Machine Color: | Can Be Customized | Bottomer Type: | HD4913B |
High Light: | cement bag machine,machines for making paper bags |

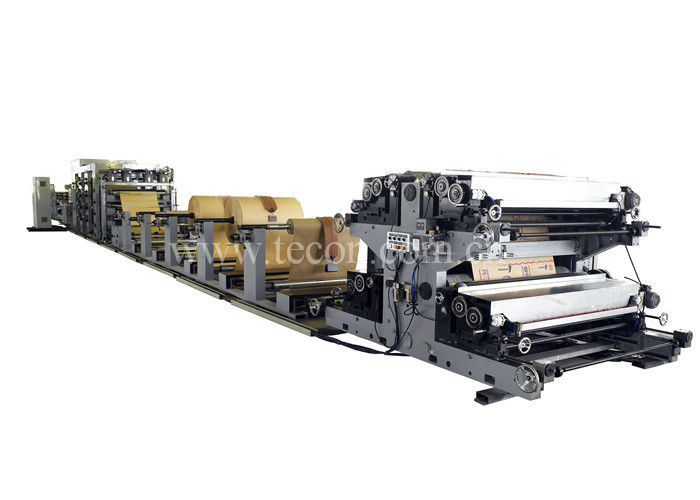

High Quality Energy Conservation Multiwall Kraft Paper Bag Making Machine
Our advantage:
1. Flat & glued bottom with filling valve;
2. Bags are avaliable for packing cement, chemicals, foods, tea, etc.
3. 2-color printing(4-color automatic printing optional)
4. 2~4 layers of paper, with one extra PE/PP film available.
5. Paper production output up to 35~50 million bags per year
6. PLC control or Servo system control available, integrated with Photoelectric & Pneumatic control
system, Siemens electrical system
7. Full technical service for installation, training and maintenance
8. Full solution for factory construction and materials purchase.
Technical parameters :
HD4913B Bottomer Machine
Operating condition
Working hour | 22 hours/day |
Design temperature | 0~40℃ |
Design humidity |
MAX. 95% |
Performance
Speed |
80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.) |
Bag length | 520~880mm |
Bag width | 420~600 mm |
Bottom width | 90~130mm |
Bottom open width | 200~380mm |
Distance between bottom centers | 420~780mm |
Valve sheet length | 100~250mm(adjustable) |
Valve sheet width | 120~170mm(adjustable) |
Main drive motor | 33kw |
Total weight | 23T |
Size of whole set | 22m×1.8m×1.8m ( L×W×H) |
Valve sheet reel diameter | Max.1,300mm |
Composing of the machine
HD4916 Bottomer Machine
1 set High speed feeder machine
1 set Perforation machine
1 set Tube opening unit
1 set Automatic gluing machine
1 set Scrip sealing machine
1 set Bag bottom turning unit
1 set Counting and delivery line
1 set Automatic delivering out unit
1 set Piling up platform
1 set Electric control unit (Schneider, German)
1 set Schneider, German Vacuum-pump.
Why chose us?
Foshan Tecon Package Machinery CO., LTD, we produce paper bag making machine. The machine is for valve bottom-pasted bag. The bags are widely used for packing powder materials or particulate materials, such as cement, chemical raw material and grains.
Sample bag detail
