Place of Origin: | Guangdong,China |
Brand Name: | Tecon China |
Certification: | CE |
Model Number: | HD4916BD |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Standard export Wooden box , 5*40HQ |
Delivery Time: | 3-5months |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 sets per year |
Manufacturer: | Tecon | Working Hour: | 8~22 Hours Per Day |
---|---|---|---|
Type: | HD4913 | Total Power: | 33KW |
Paper Layer: | 2~4 Layers Of Paper | Total Weight: | 31T |
Machine Color: | Can Be Customized | Port: | Shenzhen |
High Light: | paper bag making machine,bottom sealing bag making machine |

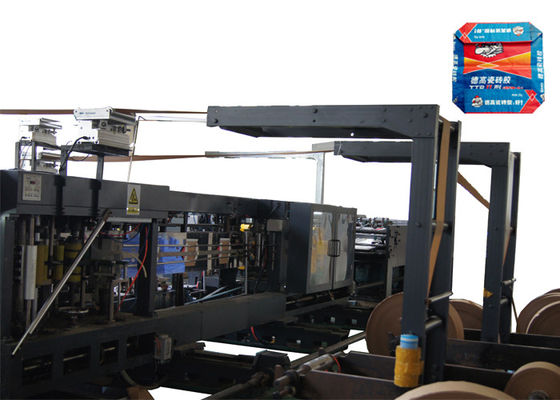

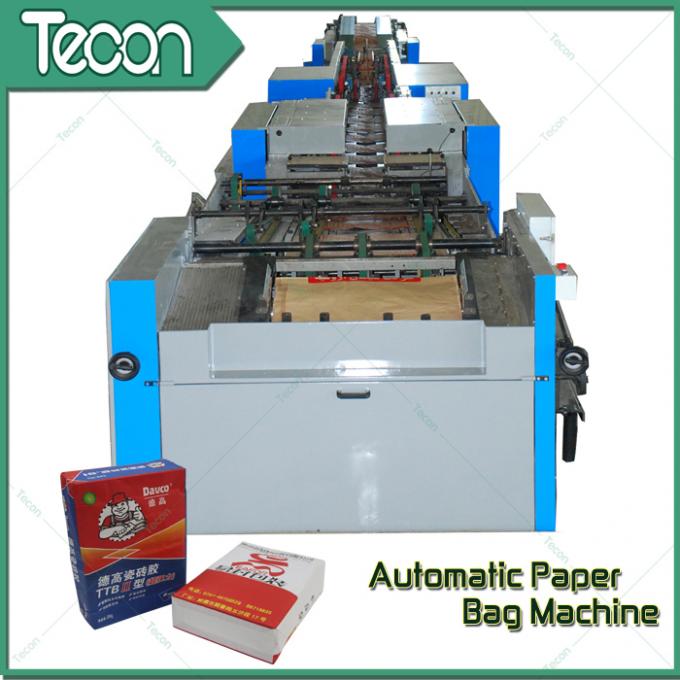

High speed automatic paper tube feeding bottomer machine for cement bag making
Paper Bag details:
Bag Width: 420~600 mm
Bottom width: 90~130mm
Length: 520~880mm
Number of plies: 2~4 papers and 1 PP/PE liner obtional.
Base paper Bleached or unbleached paper is available, with grammages ranging from 70g sm to 120 gsm. Polycoated plies or HDPE films can be incorporated if required for enhanced moisture protection.
Technical parameters of PE film laminated paper bags forming machine:
Basic model: HD4913
Bottomer speed: | 80~100 bags/min(Depends on paper quality, number of ply and operators’ skill.) |
Diameter of print roller: | ø144~ø314 mm |
Printing width: | 1300 mm(MAX) |
Paper reel width: | 860~1260 mm |
Paper reel diameter: | Max. 1, 300 mm |
Size of bottomer: | 23.5m*2.3.m*1.8m ( L*W*H) |
Air consumption: | 1,100L/min |
Power consumption: | 31kw |
HD4916BD Bottomer machine compose of following parts
Name | Quantity |
High speed feeder machine | 1 |
Perforation machine | 1 |
Tube opening unit | 1 |
Automatic gluing machine | 1 |
Scrip sealing machine | 1 |
Bag bottom turning unit | 1 |
Counting and delivery line | 1 |
Automatic delivering out unit | 1 |
Piling up platform | 1 |
Electric control unit | 1 |
Vacuum-pump | 1 |
About us
Tecon company provides all our customers timely pre-sales and after-sales service, such as counseling, inquiring, complaints, procurement. We actively follow up all the customers and efficiently provide them effective solutions.
We provide training during and after the commissioning at the buyer site to ensure that operators are capable to operate and mainten machine. Besides, customer could send engineers to our company for traing during installation and commissioning in our workshops.
Regularly our staffs in after-sale service department contact customers to know the machine running condition. If there isproblem with the machine, our company provides best solutions as soon as possible.
One year warranty period from the acceptance at the buyer site. After warranty period, we provide life-long technique servide and spare parts at the buyer cost.Implementing of comprehensive mainenance to clients with high-qualifing customer-service teams.
Provide customer satisfying services and effective solutions.
Design and provide necessary,comprehensive and effective training to all customers to make them be qualified and confident to operate our machine.Flexible maintenance service to strengthen product reliability so that the customers are happy to purchase more our machine and establish a good partnership with customers.

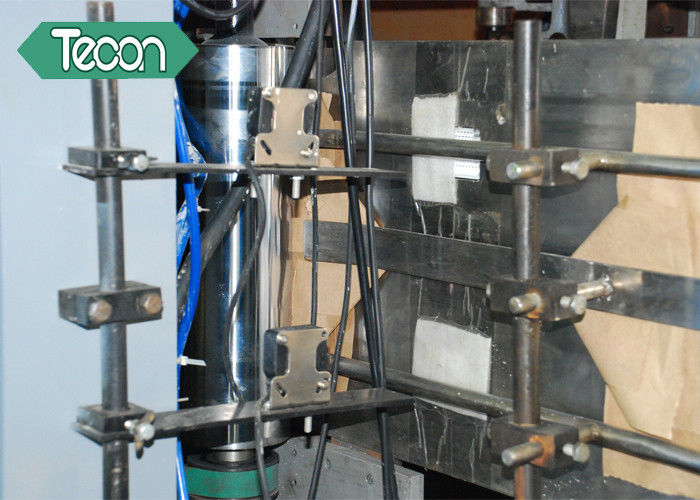

Automatic feeding uint
