Place of Origin: | Foshan,Guangdong,China |
Brand Name: | Foshan,Tecon |
Certification: | CE |
Model Number: | ZT9804+HD4913 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden box , 5*40HQ |
Delivery Time: | 5months |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 sets per year |
Manufacturer: | Tecon | Working Hour: | Up To 22 Hours Per Day |
---|---|---|---|
Air Consumption: | 1100l/min | Type: | ZT9804+HD4913 |
Total Main Power: | 63kw | Total Weight: | 52.7T |
Design Humidity: | MAX. 95% | Design Temperature: | 0~40℃ |
High Light: | bags machine,paper tube making machines |
PP Laminated / Un-laminated Cement paper tube making machine tube length 1200mm
Paper bag useage:
Valve paper bags are used for a vast number of applications, primarily in the building materials and food industries, to filling goods such as:cement,chemical material, feeds, fertilizers,tea,rice etc.
Specification of compact line
Basic model: ZT9804&HD4913
Machine technical parameter:
Tuber Speed: 130~150 tubes/min
Bottomer speed: 80~130 bags/min
Diameter of print roller: ø144~ø314 mm
Printing width: 1300 mm(MAX)
Paper reel width: 860~1260 mm
Paper reel diameter: Max. 1, 300 mm
Size of tuber: 34.3m*2.4m*2.7m( L*W*H)
Size of bottomer: 21.3m*2.3.m*1.8m ( L*W*H)
Air consumption: 1,100L/min
Power consumption: 63kw(ZT9804 30KW,HD4913 33KW)
Paper Bag details:
Bag Width: 420~600 mm
Bottom width: 90~130mm
Length: 520~880mm,longer can be customized.
Number of plies: 2~4 papers and 1 PP/PE liner obtional.
Colour printing: 4 colors available (ZT9802 is 2 color printing)
Base paper Bleached or unbleached paper is available, with grammages ranging from 70g sm to 120 gsm. Polycoated plies or HDPE films can be incorporated if required for enhanced moisture protection.

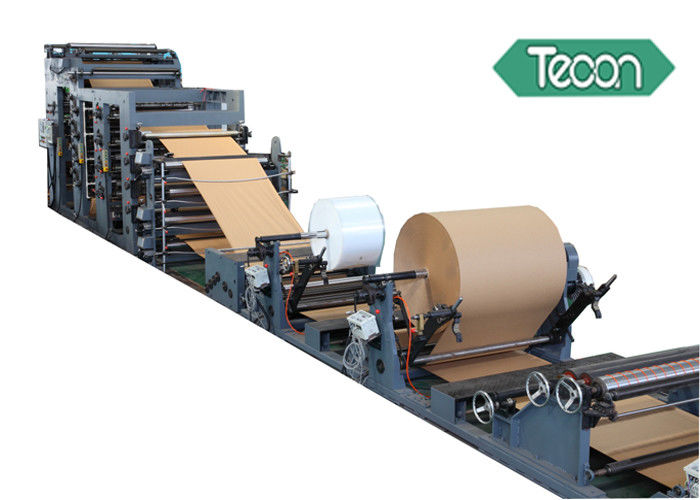

ZT9804 Tuber Machine compose of following parts
4-color printing machine | 1 |
Mill roll stands | 5 |
Paper web guide | 1 |
Automatic paper unwinding | 1 |
Auxiliary web guide | 1 |
Perforation unit | 1 |
Cross stepped gluing unit | 1 |
Longitude seam gluing unit | 1 |
Tubes forming unit | 1 |
Driving tearing-off unit | 1 |
Delivery and counting unit | 1 |
Electrical system | 1 |
Bearing | NSK Japan |
Compressor | 1 |

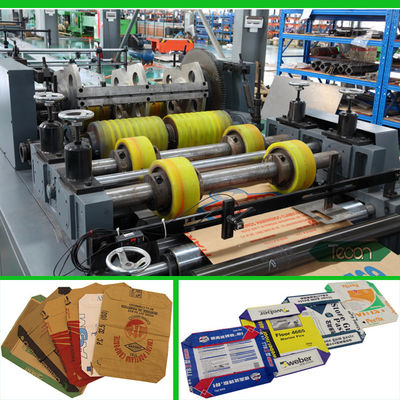

HD4913 Bottomer machine compose of following parts
Name | Quantity |
High speed feeder machine | 1 |
Perforation machine | 1 |
Tube opening unit | 1 |
Automatic gluing machine | 1 |
Scrip sealing machine | 1 |
Bag bottom turning unit | 1 |
Counting and delivery line | 1 |
Automatic delivering out unit | 1 |
Piling up platform | 1 |
Electric control unit | 1 |
Vacuum-pump | 1 |
Sample bags
Our factory overview
