Place of Origin: | China |
Brand Name: | Tecon |
Certification: | CE |
Model Number: | ZT9804S+HD4916BD |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | negotiation |
Packaging Details: | Ply Wood case |
Delivery Time: | 3-5 months after received your payment |
Payment Terms: | T/T or L/C |
Supply Ability: | 16pcs per year |
Paper Roll Width: | 860-1260mm | Cut Type: | Stepped End Cut,Economy/Flash Cut & Notch Cut |
---|---|---|---|
Specification Gear: | 51~80 Teeth(M=4) | Tube Width: | 380~620mm |
Tube Length: | 400-1400mm | Main Drive Motor: | 47KW |
Speed: | 80-120BAGS/MIN | Servo System: | Yes |
Number Of Ply: | 2~4paper+ 1 PP/PE | Bearing: | (NSK, Japan) No Special Gear; |
Other: | Servo System Control Or PLC Control Available; | Bag Type: | For Cement, Chemicals, Foods, Tea, Etc. |
High Light: | bottom seal bag making machine,paper bag making machines |
Specifications
1) Cement paper bag making machine.
2) Prompt and professional after sale service.
3) High-speed Automatic Cement Paper Bag Making Machine is professional machine for valve bottom-pasted bag. The bags are widely used for packing powder materials or particulate materials, such as cement, chemical raw material and grains.
Features
1) Alternating frequency conversion for adjusting speed.
2) Centralized vacuum compressed air and glue supply station.
3) Pieces process control system ensures a successive production with high efficiency. 4) An accurate synchronized device ensures a stable and realizable tube end opening and valve
patches pasting.
5). Open layout of machine is convenient for changing components for different sack size.
Technical parameters of our production line:
ZT9804S Tuber machine with servo system
Type |
ZT9804S |
Printing colors |
4 |
Speed |
80-120BAGS/MIN |
Tube Width |
380~620mm |
Tube length |
400-1400mm |
Specification gear |
51~80 teeth(M=4) |
Type of cutting |
Step cut&Flat cut |
Number of ply |
2~4paper+ 1 PP/PE |
Diameter of print roller |
Ø196~ø312 mm |
Printing width |
1300 mm(MAX) |
Paper reel diameter |
Max. 1, 300 mm |
Paper reel width |
660--1260mm |
Main drive motor |
47KW |
Servo system |
YES |
Machine size |
35.3﹡2.4﹡2.7(M) |
Machine weight |
N 32(T) |
HD4916BD Bottomer Machine Performance
Speed |
MAX 80 bags/min |
Tube Width |
380~620 mm |
Bottom Width |
80~160 mm |
Valve Sheet Length *Width |
(100-300)﹡(120-340)adjustable |
Bag Length |
390~1020 mm |
Bottom Center Distance |
290~860 mm |
Number of ply |
2~4paper+1 PP/PE |
Strength sheet unit |
YES |
Strength sheet length *width |
(270~520)﹡(80~160) |
Main Drive Motor |
35KW |
Machine size |
23.5﹡2.3﹡1.8(M) |
Machine weight |
N34(T) |
After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we Strongly feels about the importance of supporting our customers and the product solutions we provide. Also we offer one year guarantee period, paid service for whole life.

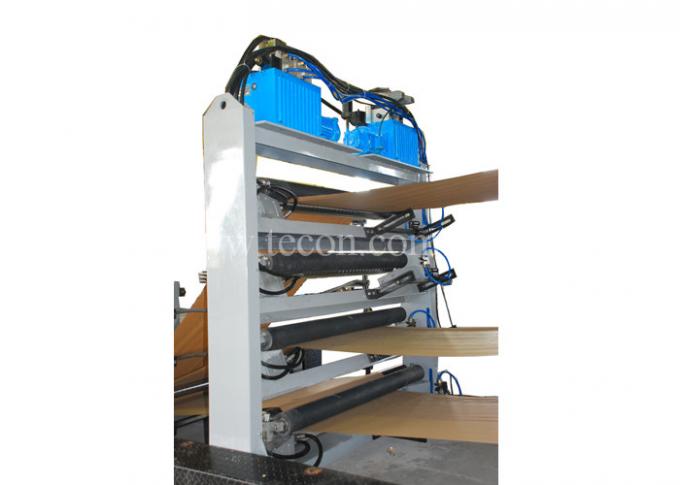

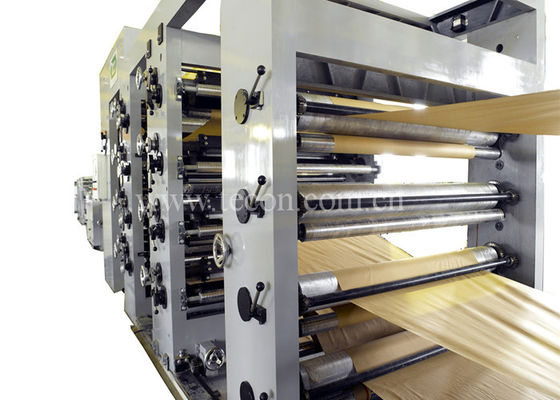

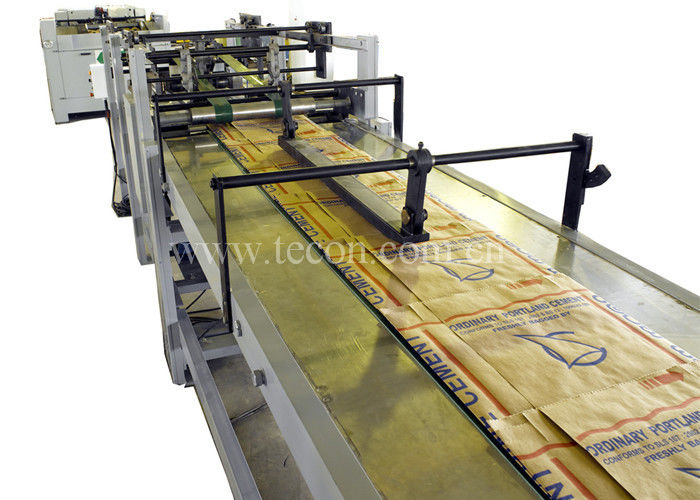

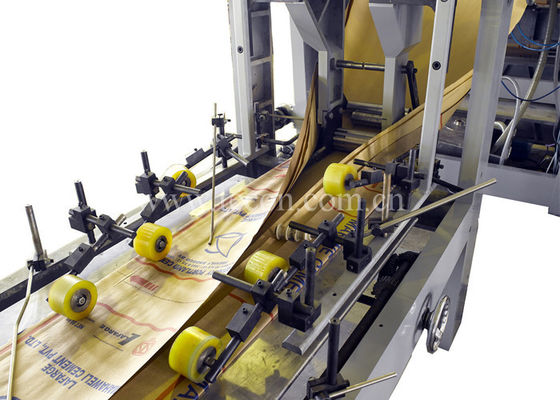

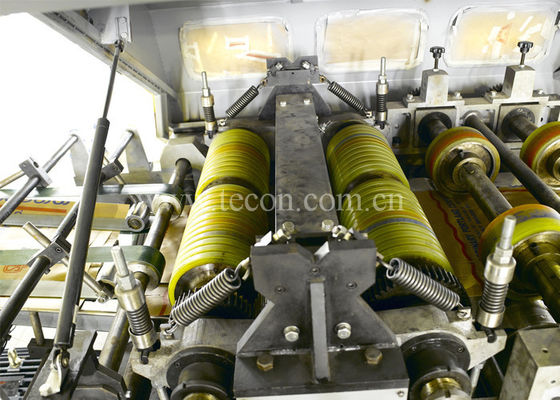

Our machine:
Automatic valve paper bag machine for cement,chemicals and food

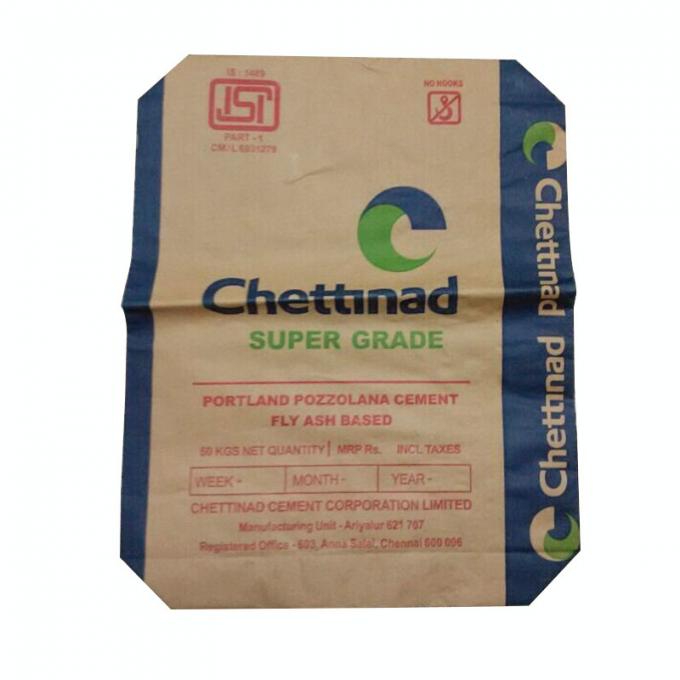

Sample bags:
Applications:
The ZT9804S tuber machine,which is developed by our company on the basis of ZT9804 standard
tuber machine, is added a servo control component on each of the four key procsses (printing,
perforation, gluing and separation), to form a closed loop servo control system by the PLC, servo
control module, the main frequency traction motor, servo motor group,encoder, color components
to ensure that the cutting position of each printing bags matches the color patch of the tube.
Through the touch screen, it is easy and visualized to adjust the specification of tube.When it is on-line
printing, ZT01 print unit prints precisely and neatly, and it only needs to replace print roller and
its gear. Through adjustment of thorn ranked knife position, ZT07 separation machine can cut both
the ladder cutting and straight cutting tubes. Other related adjustments are operated on touch screen,
saving of labor and time .
When it is not on-line printing, besides the above characteristics, when requires more high precision
printing quality,
it can complete printing by the using of other printing equipments, producing tubes in ZT9804S
Tuber machine, expanding the specification of tubes of ZT9804S(400mm to 1400mm). Need not to
change any specification wheel, all adjustments are operated on the touch screen.
ZT9804S is applicable to producing variety of paper bags, especially when in producing starch paper
bags, tea bags, chemical bags and so on, which need frequent specification changing and high-precision
printing quality, it can fully play its unique advantages.
